0.6-1.5mm Thickness Galvanized Steel 70mm 78mm Awning Tube Roll Forming Machine

Name: 0615mm Thickness Galvanized Steel 70mm 78mm Awning Tube Roll Forming Machine
Brand: Sussman
Price: 1 USD

Buy cheap 0.6-1.5mm Thickness Galvanized Steel 70mm 78mm Awning Tube Roll Forming Machine product

Brand Name : Sussman

Model Number : SM-OP

Certification : CCC, SGS, ISO9001, CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P

Supply Ability : 10 sets per month

Delivery Time : 75days

Packaging Details : Standard packing

Thickness : 0.6-1.5mm galvanized steel

Working Speed : 0-10meters/min

Forming Station : About 30 Stations

Drive System : Chain Driven

Cutting method : Fly saw cutting

Motor power : 15KW

Contact Now

0.6-1.5mm Thickness Galvanized Steel 70mm 78mm Awning Tube Roll Forming Machine

Awning Tube Roll Forming Machine comprised of 3T manual uncoiler, feeding guiding, roll forming machine, straighten device, fly saw cutting, electrical control system, output table.

Technical Parameter:

Material thickness:0.6-1.5mm galvanized coils

Forming speed: 0-10M/min (EXCLUDING CUTTING STOP TIME)

Forming roller: about 30 stations

Main motor power: 7.5KW*2

Roller material: 45# forged steel, surface coated with chrome

Main shaft material: 45# steel

Main axis dia.: ￠60mm

Hydraulic cutting pressure: 10-12Mpa

Cutting method: saw cutting, cutting after roll forming.

Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm

Water cooling system

Way of Drive: Chain

Machine List:


			Serial No.
			Commodity & Description
			Quantity

			1
			3T manual un-coiler
			1 set

			2
			feeding guiding
			1 set

			3
			Main roll forming machine with water cooling
			1 set

			4
			Output table
			1 set

			5
			Main drive
			1 set

			6
			Fly saw cutting
			1 set

			7
			Control box
			1 set

			8
			Water cooling system
			1 set

Working Flow:

Uncoiling – feed Guiding–Roll forming –fly saw cutting –Run-out table

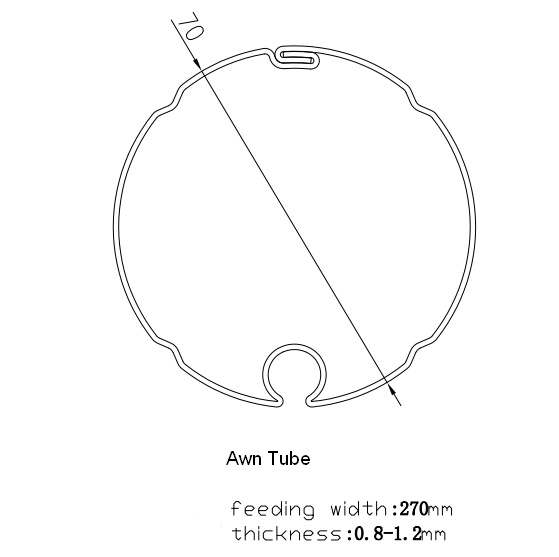

Profile Drawings:

We also can make the sizes 65mm, 70mm, 78mm, 85mm by changing cassettes

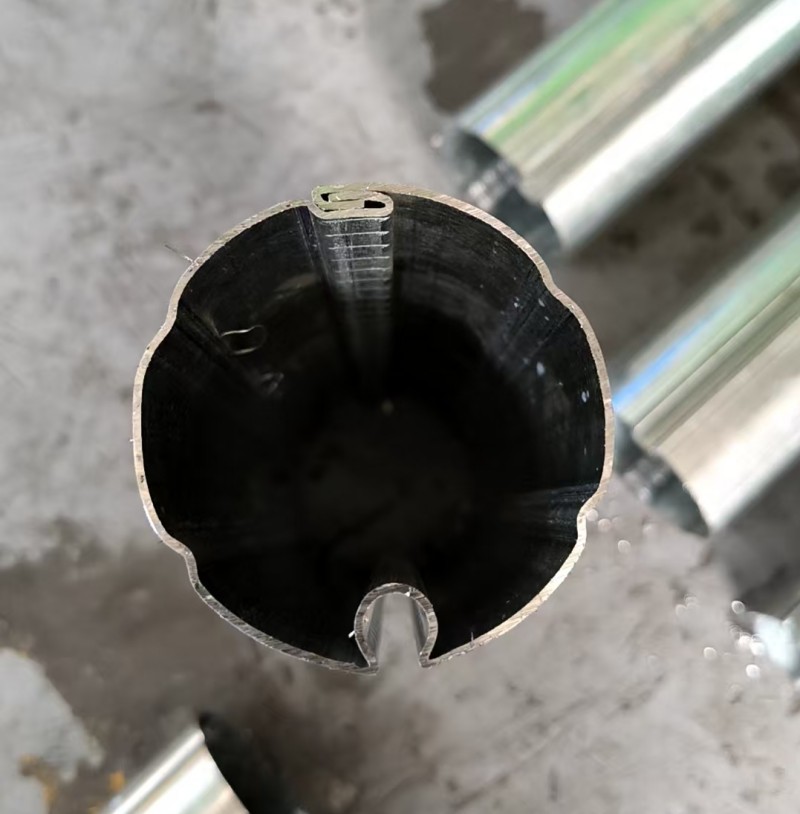

Samples:

Application:

0.6-1.5mm Thickness Galvanized Steel 70mm 78mm Awning Tube Roll Forming Machine Images
